Introduction to Single use Bioreactor

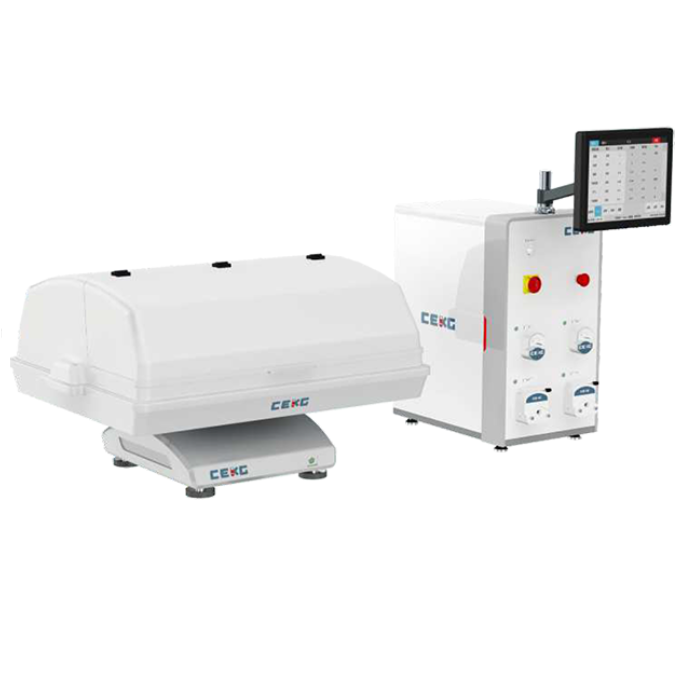

The SKC600 Single-Use Bioreactor is specifically designed for cell culture applications. It utilizes a rocker platform to accommodate single-use suspension culture bags or single-use fabric carrier culture bags—both developed in-house by Bailun.
The system offers precise control over key culture parameters, including rocker speed, tilt angle, gas flow rate, temperature, pH, dissolved oxygen (DO), carbon dioxide (CO₂), oxygen (O₂) concentration, and weight.
The SKC600 supports interchangeable trays of various sizes to meet different process volumes. Optional tray configurations include:
10L tray: compatible with 2L, 5L, and 10L culture bags
20L tray: compatible with 20L culture bags
50L tray: compatible with 50L culture bags
This flexibility makes the SKC600 ideal for small- to mid-scale cell culture processes in research, development, and production environments.
Single use Bioreactor Feature
Quick and Easy Tray Replacement
The SKC600 allows rapid tray replacement. Compatible with 10L, 20L, and 50L trays, enabling flexible scale adjustments with minimal downtime.Support for Suspension and Adherent Cell Culture
Designed to accommodate different types of culture bags, the system supports both suspension and adherent cell cultures. Continuous perfusion of adherent cells is easily achieved using our patented fabric carrier culture bags.Batch and Perfusion Culture for Suspension Cells
The bioreactor supports both batch and perfusion culture modes for suspension cells. The use of perfusion membrane culture bags enables high-density suspension cultures and seamless scale-up from laboratory to production.Adherent Cell Trypsinization, Transfer, and Scale-Up
The fabric carrier culture bags facilitate large-scale adherent cell growth. After culture, adherent cells can be enzymatically detached (trypsinized), harvested, and prepared as seed cells for subsequent processes or scale-up.
Know More About Single use Bioreactor
| Tray size | 10L | 20L | 50L | ||
| Total volume(suspension culture) | 2L | 5L | 10L | 20L | 50L |
| Total volume(adherent culture) | 2L | 5L | 10L | 20L | 50L |
| Max. working volume | IL | 2.5L | 5L | 10L | 25L |
| Control system | Siemens PLC, 15-inch color touch screen, Ethernet interface, USB interface | ||||
| Temperature control | Heating plate, PID automatic control, accuracy: ±0.2°C; Temperature control range: 5-40°C above | ||||
| Rocker speed | l-40rpm | ||||
| Tilt angle | 1-12° | ||||
| Gas※ | 3 thermal mass flow controllers (Air/O2/CO2), 1 thermal mass flow controller with 3 gas mixer optional | ||||
| Exhaust ※ | Exhaust condenser, exhaust filter heater optional | ||||
| Exhaust analysis | O2(0-50%), CO2 (0-15%) | ||||
| Pressure detection | Range:-100mbar——l00mbar; Stop air intake when it is exceeded. | ||||
| pH | Single-use pH probe, control range: 6-8, accuracy:±0.05pH; PID control; cascaded by gas flow, peristaltic pump, etc. | ||||
| DO | Single-use DO probe, control range: 0-100%, accuracy:±3%; PID control; cascaded by rocker speed, MFC, etc. | ||||
| Pumps※ | 4fixed-speed peristaltic pumps,customized feeding/acid feeding/alkali feeding/ discharging etc. 25RPM or 100RPM variable speed optional | ||||
| Load cell | Load: 0-50kg, accuracy: ± (0.050 +1% loading sampling) kg; cascaded by pumps | ||||
| Utilities | Air/O2/CO2, pressure: 15-20PSIG | ||||
| Signal interface | Optional | ||||
| Power supply | AC220V,50/60HZ, 10A | ||||
The following picture shows the production workshop of Bailun.
