CIP station
Over 25 years production experience
Your Reliable Chinese CIP Station Supplier : Ferbio
Ferbio Biotechnology is a leading CIP (Clean-in-Place) station and bioreactor supplier in China, providing comprehensive solutions for laboratory, pilot-scale, and industrial production. Our product range includes fermenters, animal cell bioreactors, plant cell bioreactors, single-use bioreactors, liquid dispensing systems, and disposable reactors, among others.
Ferbio is capable of manufacturing bioreactors with volumes ranging from 0.1 L to 1000 KL, while also offering technical services and intelligent, customized bioprocess solutions to meet diverse customer needs.
With a strong team of experienced engineers specializing in fermentation processes, biochemical equipment, and chemical technology, along with renowned experts and academic consultants, Bailun is committed to innovation, quality, and excellence.
Guided by the core value of being customer-centric, Bailun continuously strives to create lasting value for customers and to provide smart, efficient, and reliable solutions for modern bioprocessing.
CIP Station
The Clean-in-Place (CIP) station is an independent process module designed for the automated cleaning of bioreactors and process systems. Typically, a single-tank configuration is used for small bioreactors, while two- or three-tank systems (acid, alkali, and water) are applied for larger bioreactors.
CIP stations generally operate in a passive mode, ensuring safe, efficient, and repeatable cleaning cycles. According to the customer’s specific cleaning requirements, Bailun Biotechnology can provide fixed or mobile CIP systems in single-, double-, or multi-tank configurations. Optional features include heating, acid and alkali dosing, and automated cleaning solution control, allowing the system to deliver comprehensive and customizable cleaning performance for a wide range of bioprocess applications.
CIP Station Improve Your Production Efficiency
The CIP station adopts a fully automatic cleaning system, monitored and controlled through an intuitive human–machine interface (HMI) with graphical display.
Customers can flexibly adjust cleaning formulas to meet the requirements of different production processes. The system automatically regulates key process parameters such as cleaning time, pressure, flow rate, and temperature, ensuring consistent and efficient cleaning performance. In addition, the CIP station supports the use of various detergents and cleaning agents, offering maximum adaptability for diverse application needs.
The CIP cleaning system is widely used in modern large-scale production facilities such as pharmaceutical plants, breweries, dairy factories, canneries, seasoning and food processing plants. It is designed for on-site cleaning of pipelines, tanks, containers, and other process equipment that require high standards of hygiene and cleanliness in demanding production environments.
Cases

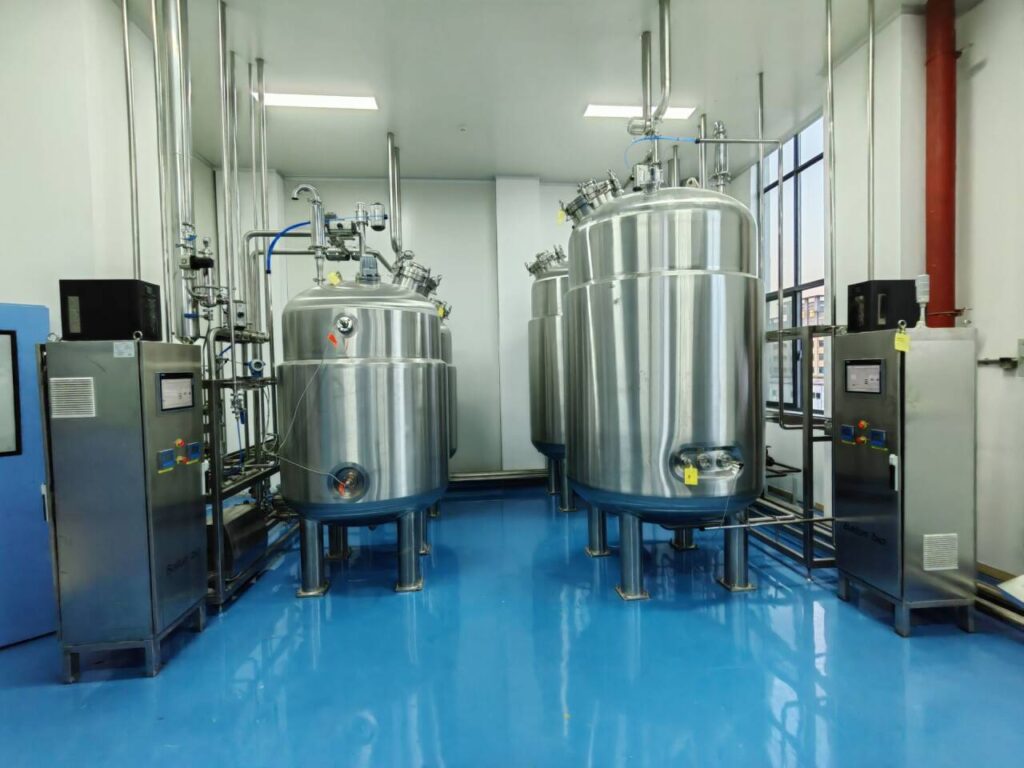

Bailun 1T CIP system(double tank)

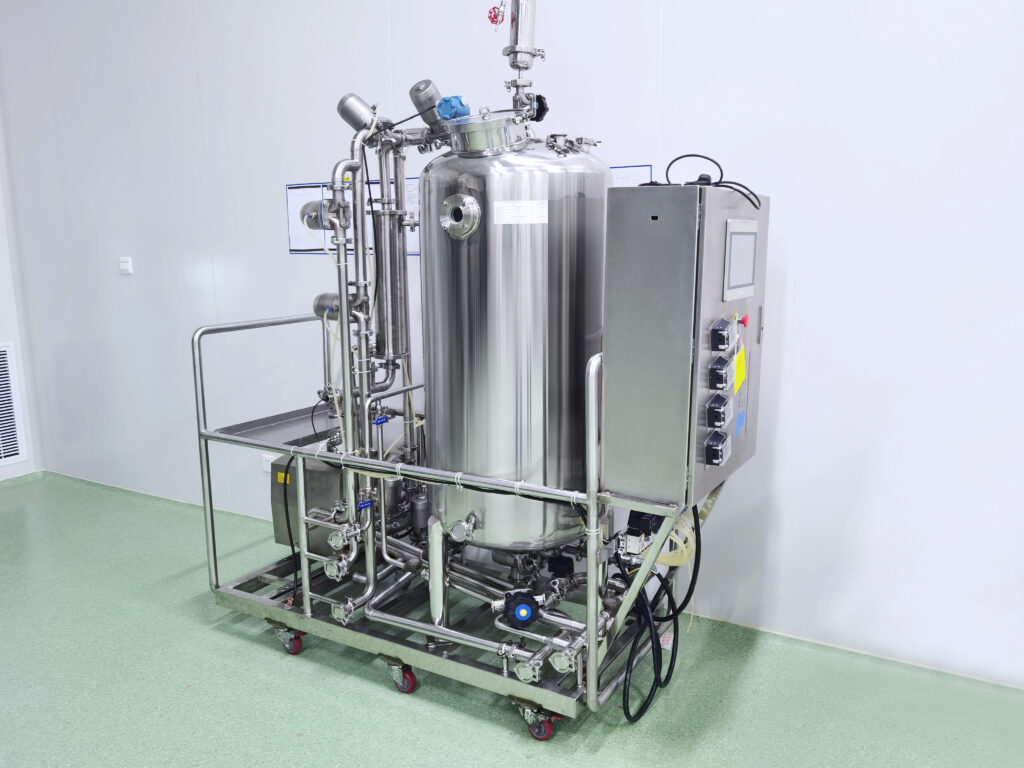

Bailun 500l-1T CIP system

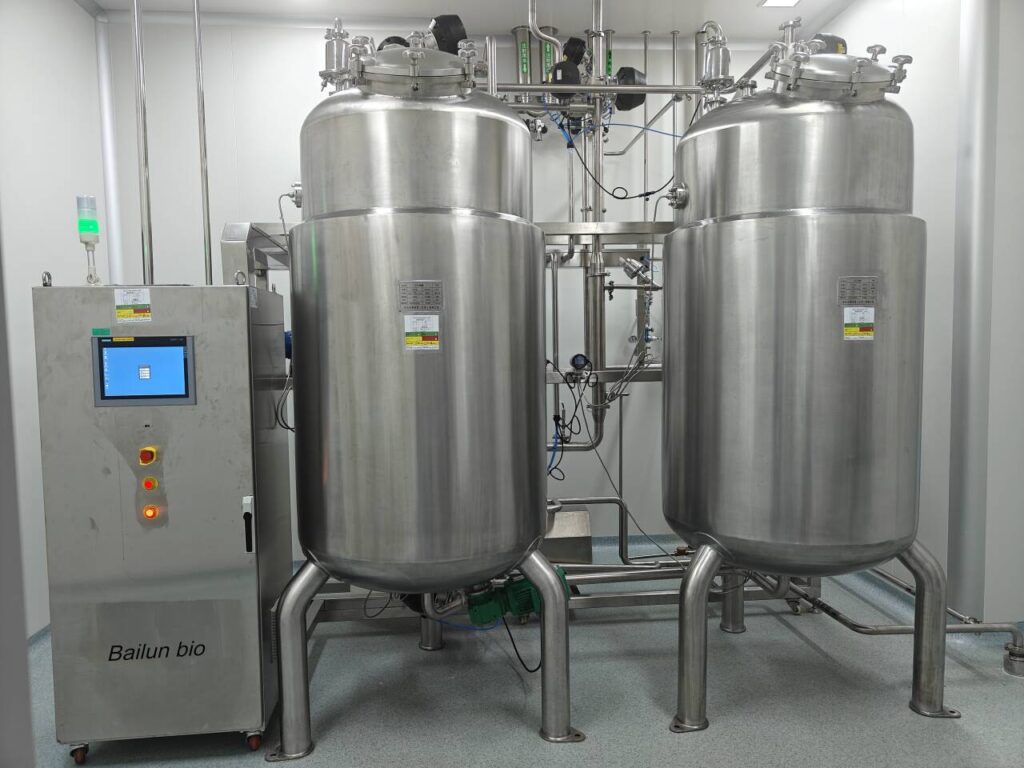

Bailun 2T CIP system(double tank)

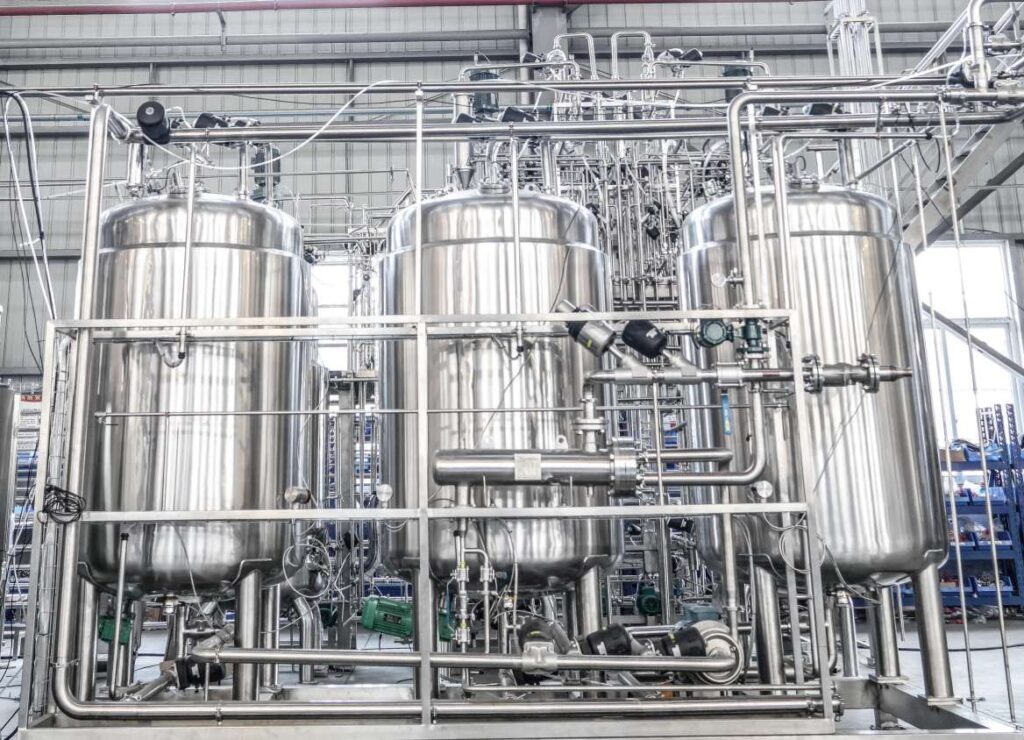

Bailun 3T CIP system(three tank)
Know More About CIP Station
| Item | Name | Specification | Quantity | Technical parameters |
| 1) | CIP Tank | 100L | 1set | SUS316L material, inside and outside surface polishing treatment, form a complete set of interfaces |
| 2) | CIP Transport Water Pump | MHI406N-1/10/E/3 | Supporting | Heat pipe pump selectionType: MHI406N-1/10/E/3Voltage: 3×400VACFrequency: 60HzImpeller Max: 160mmFlow Volume: 8.0-10.0 m3/hHead: 69mRPM: 2900rpmPressure Max.: 8 barPower:1.0 KW |
| 3) | CIP Return Water Pump | ZXB | Supporting | Heat pipe pump selectionType: ZXBVoltage: 3×400VACFrequency: 60HzImpeller Max: 189mmFlow Volume: 3.0-15.0 m3/hHead: 20mRPM: 2900rpmPressure Max.: 10 barPower: 3.0 KW |
| 4) | Pipe, Valves, | Supporting | Supporting pipe and valve installation, valve resistance to acid and alkali, portable system | |
| 5) | Operating System | Supporting | Automatic control of the control box of stainless steel washing temperature, washing time, and automatic control circuit, the automatic control of acid reflux lye | |
| 6) | Others | Systems and processes to meet the GMP requirements |
The following picture shows the production workshop of Bailun.
Supporting Equipment
The refrigeration system of a chiller unit consists of four basic parts: compressor, condenser, throttle, and evaporator. Connect the four major components in a certain order using copper pipes to form a closed system, which is filled with a certain amount of refrigerant.
The compressor sucks in low-temperature and low-pressure Freon gas from the evaporator, compresses it into high-temperature and high-pressure Freon gas, and then flows through a thermal expansion valve (capillary tube), throttling it into a low-temperature and low-pressure Freon liquid two-phase object. Then, the low-temperature and low-pressure Freon liquid absorbs heat from indoor air in the evaporator, and the cycle of compression condensation throttling evaporation is repeated.
The Ferbio eam generator uses well-known imported accessories, which are corrosion-resistant and finely crafted. Fast steam production in one minute, with a thermal efficiency of up to 100.27%. Clean steam, sufficient gas production, can provide stable steam for a long time, ensuring the required heat energy during the drying process. Advanced vertical cross flow structure, using 12Cr1MoVG high-pressure boiler steel and stainless steel laser fins with extremely high heat transfer efficiency, no explosion risk, safer equipment, and better steam quality.
Ferbio air compressor is an oil-free and silent air compressor equipped with a domestically produced powerful air pump and a gas tank with built-in anti-corrosion coating. It has a high cost performance and is used as a supporting equipment for bioreactors. Has the following characteristics:
● Independently produce machine heads and components;
The machine is equipped with multiple automatic protection systems for safer use;
● Easy to operate, ready to use upon power connection, automated design, no need for dedicated personnel to operate the work;
●Low noise during work, original oil-free piston system, high efficiency, low loss, and clean gas discharge;
●Optional double-layer vacuum drying and filtering equipment to meet the supply of high-purity air source and protect user equipment;
