Magnetic Stirring Glass Bioreactor
Over 25 years production experience
Ferbio: Your Trusted Manufacturer of High-Quality Chinese Magnetic Stirring Glass Bioreactors
Ferbio Biotechnology is a leading manufacturer of magnetic stirring glass bioreactors in China. Our product range includes bioreactors for laboratory, pilot scale, and industrial production, such as fermenters, animal cell bioreactors, plant cell bioreactors, single-use bioreactors, liquid dispensing systems, disposable reactors, and more. We offer bioreactors with volumes ranging from 0.1L to 1000KL, along with comprehensive technical services.
Ferbio specializes in providing intelligent, customized solutions for bioreactor processes. Supported by a team of experienced fermentation process engineers, biochemical equipment experts, and renowned scholars serving as technical consultants, we are dedicated to creating value for our customers. Our customer-centric approach remains the core principle guiding our pursuit of excellence.

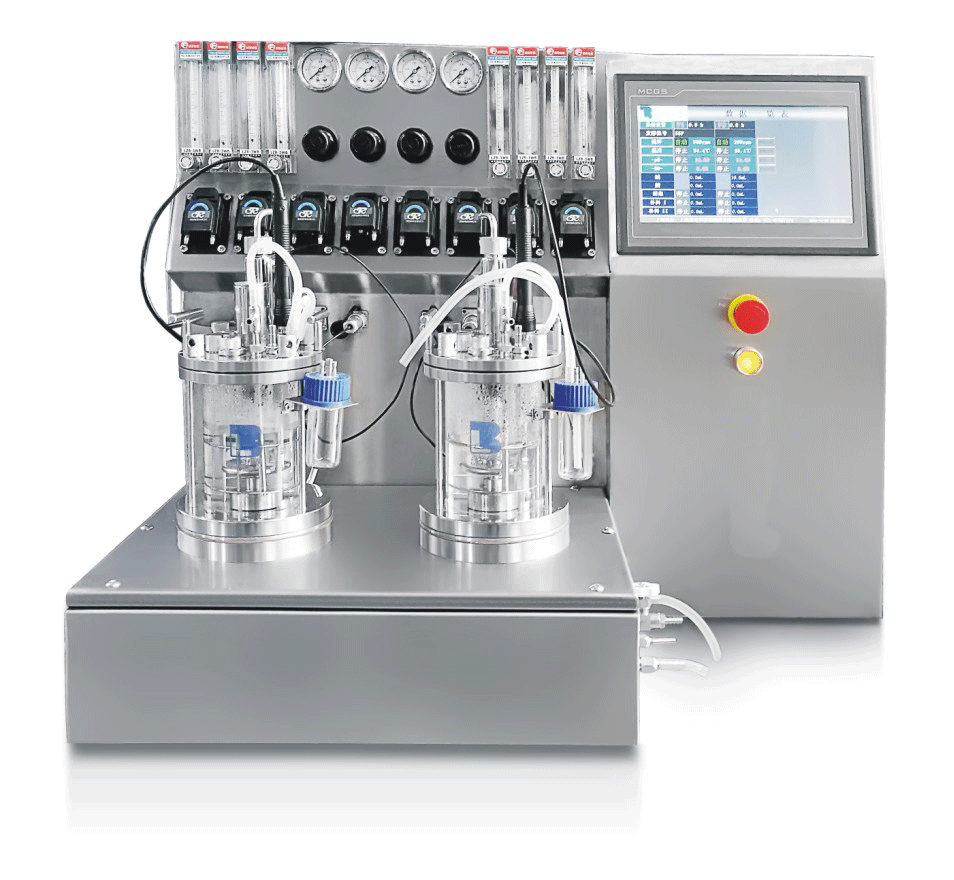

What is Magnetic Stirring Glass Bioreactor GC Type?
The FERBIO-XGC (X indicates volume in liters) series magnetic stirring glass bioreactors feature magnetic drive systems (top or bottom), off-site sterilization, and program-controlled automatic fermentation parameters. They are designed for easy operation and cleaning, compact for space-saving use. The standard model controls pH, DO, foam, temperature, agitation, and gas, with control panel options in English, Chinese, and Russian.
The GC model includes a single-layer glass wall with a stainless steel 316L cover and a stainless steel round-jacket bottom, with heating provided from the bottom. This batch bioreactor is ideal for various fermentation applications, including batch, batch-fed, and processes for bacterial, yeast, microorganism, animal cell culture, algae, and more.
Magnetic Stirring Glass Bioreactor Can Improve Your Production Efficiency
The magnetic stirring glass bioreactor offers enhanced safety by eliminating the need for a shaft to pass through the cover or bottom, making it especially suitable for low-speed agitation and mammalian cell culture. All internal components are mounted on the tank cover, allowing for easy maintenance and cleaning.
The design separates the motor from the tank body, significantly reducing the overall weight of the vessel. The magnetic stirring system uses high-performance permanent magnet materials and advanced processing technology to ensure long-term reliability with no risk of demagnetization.
Magnetic stirring Glass Bioreactor Have Multiple Parameters to Choose From
10 inch color touch screen of the magnetic stirring glass bioreactor displays all measured values and control parameters, usually each bioreactor has 4 peristaltic pumps for acid, alkali, defoamer, medium. Automatic control pH/DO/temperature/agitation/antifoam. Gas has manual control and auto control (mass flow meter) for choose. All fermentation data have history curvy and can export by U disk.
Magnetic stirring glass bioreactor accept customize and design.More optional: Remote control, Mass flow meter, gas O2/N2/CO2, Exhaust gas (O2/CO2) analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, weight system, Live cell sensor(Biomass), Variable speed pump, Printing, 15” color touch screen, Siemens screen, program open setting etc..
Know More About Magnetic Stirring Glass Bermenter
| Parameter | Description |
| Total volume | 0.2L,0.5L,1L,2L,3L,5L,10L,20L,30L,40L etc. |
| Working volume | 50%~70% |
| Tank | Single glass vessel with stainless steel bottom. Lid made by stainless steel 316L with ports, condenser on the cover |
| Stirring system | Mechanical stir(GJ type) or Magnetic stir(GC type, bottom/top drive), 3 six-blade paddle and 1 foam breaker, each paddle height adjustable. Stir speed: 50~1000rpm/50-500rpm |
| Sterilization | Off-site sterilization (Autoclave) |
| Gas control | Control by rotor meter, air flow 2vvm. |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoamer by peristaltic pump |
| Temperature control | Auto-control, electric heating range water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| DO control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Sampling | Manual sampling |
| Control parameters | 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | We can customize the parameters of magnetic stirring glass bioreactor according to customer needs，such as Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, etc., |
The following picture shows the production workshop of Bailun.
